SPECIFICATIONS

AI Functions: Human Detection

Alarm Action: FTP Photo,Email Photo,Local Alarm

App name: other

Audio Output: Two Way Audio

Brand Name: Reolink

Browser Supported: Edge, Chrome, Firefox, Safari

Certification: CE,FCC,RoHS

Code Rate: Main stream: 1024Kbps - 8192Kbps (default: 6144Kbps) Sub stream: 64Kbps - 512Kbps (default: 256Kbps)

Color: White,WHITE

Color Night Vision: YES,4pcs/3W/3000K/400Lumens

Connectivity: IP/Network Wired

Day&Night: full color

Digital Zoom: other

Dimensions (L x W x D)(mm): 67 x 67 x 187mm

Ethernet: One 10M/100Mbps RJ45

Field of View: H: 93.2°/ V:48.2°/ D:116.6°

Frame Rate: 2fps - 25fps

High Definition: 8.0 Megapixels

Hign-concerned Chemical: None

Humidity: 10% ~ 90%

IP Rating: IP67

IR Distance(m): 30m

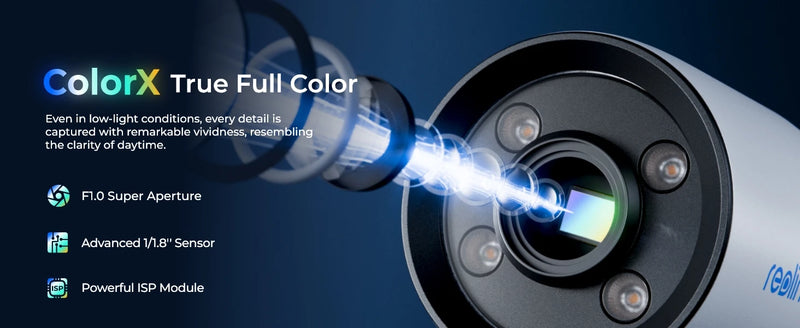

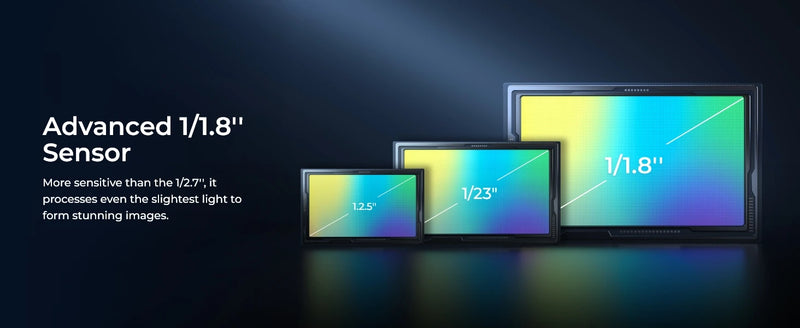

Image Sensor: 1/1.8" CMOS sensor

Installation: Ceiling,Normal,Wall Mounted

Lens: f=4.0mm F=1.0 IR CUT

Lens (mm): 4mm

Limited Warranty: 2-year limited warranty

Maximal User Access: Max. 20 users (1 admin & 19 user); Max. 12 simultaneous streams (2 main & 10 sub streams)

Megapixels: 4MP

Minimum Illumination(Lux): 0

Model Number: ColorX810

OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android

Operating Temperature: -10°-60°

Optical Zoom: None

Origin: Mainland China

Power Consumption(W): <12W

Power Mode: Mains Electricity

Power Supply: With POE

Power Supply(V): DC12V /1A& PoE (IEEE 802.3af 48V Active)

Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP,IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Record Mode: Motion-triggered recording (default); Scheduled recording, 24/7 recording

Scene: Indoor and outdoor

Sensor: CMOS

Sensor Brand: Omnivision

Shell Material: Metal

Smart Alarm: Motion detection; person detection; vehicle detection; animal detection

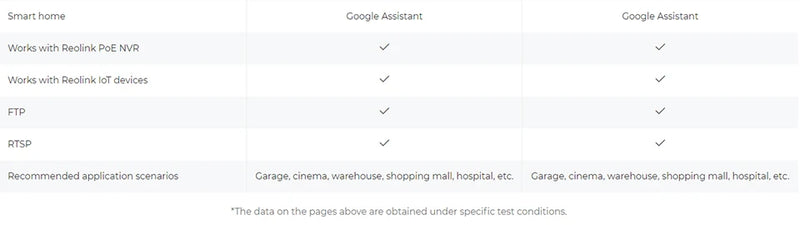

Smart home platform: Google Assistant

Special Features: Waterproof / Weatherproof

Storage: None,MicroSD Card Slot (Max. 256GB)

Style: Bullet Camera

Supported Mobile Systems: IOS,Android

Supported Operating Systems: Windows 10,Windows 8,Windows 7,Mac OS

System: Reset Button

TF Card: None

Temperature: -10°C~+50°C (14°F~126°F)

Video Compression Format: H.264

Video Resolution: 2560X1440(4 Megapixels)@25FPS

Viewing Angle : 87°

Weight: 467g

is_customized: No
